Calendar

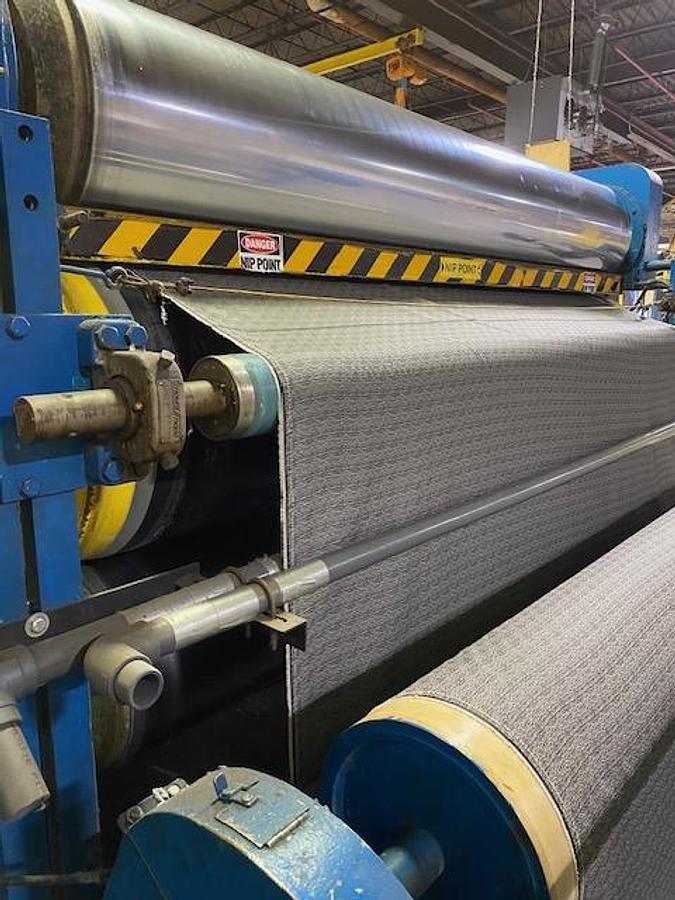

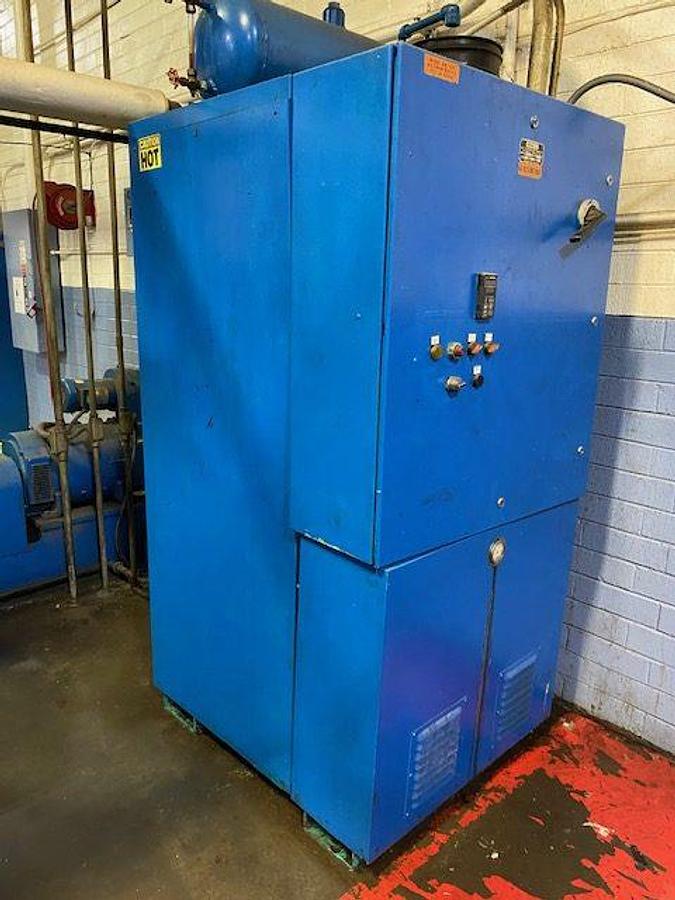

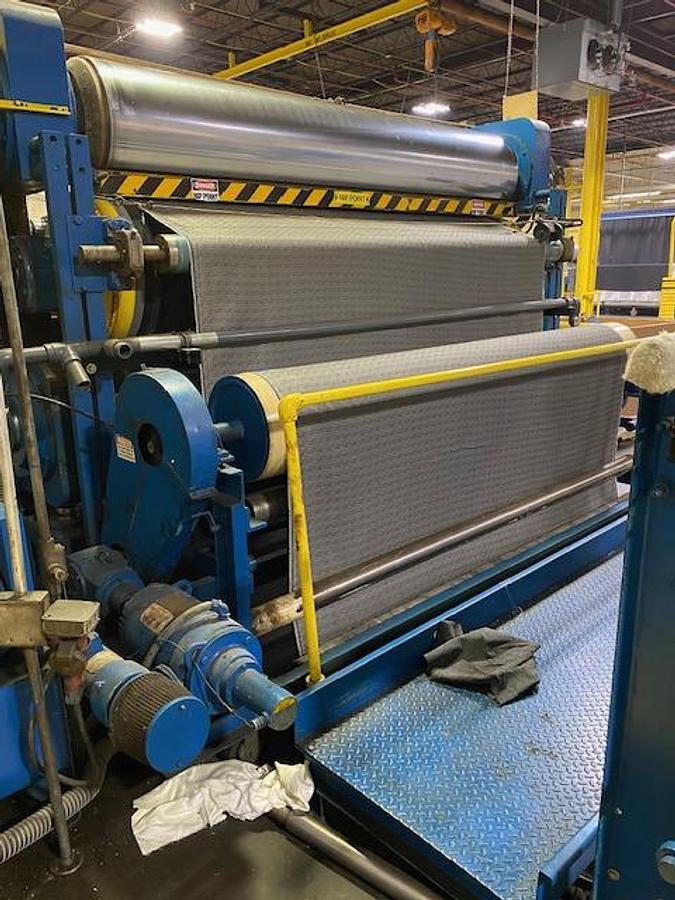

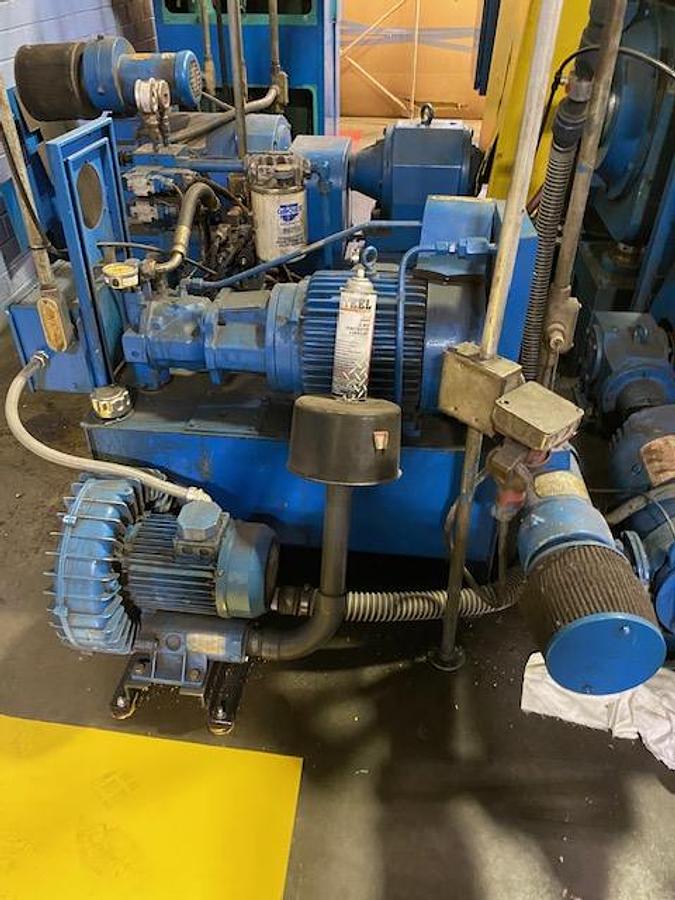

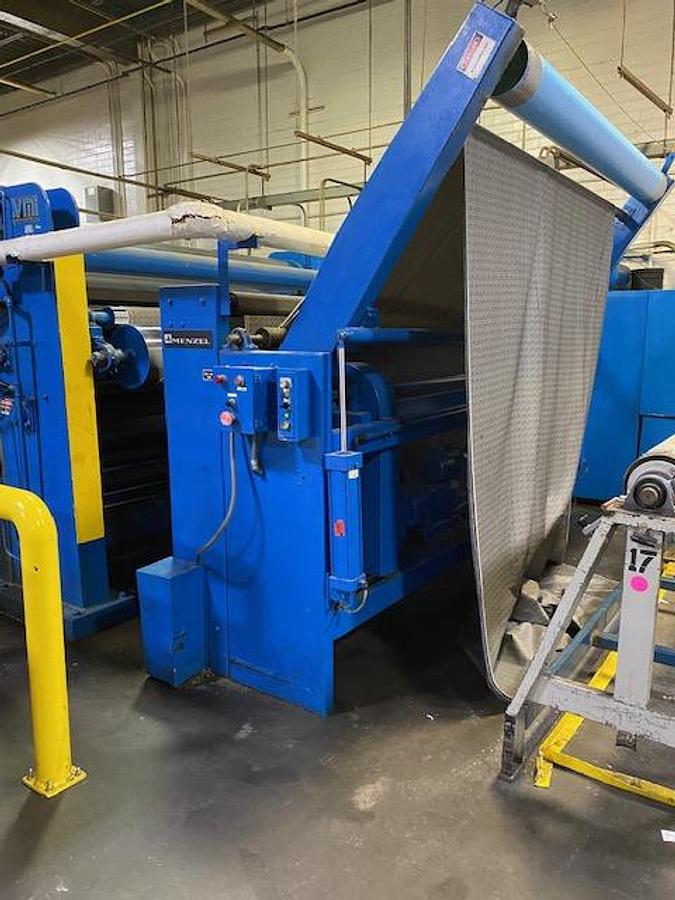

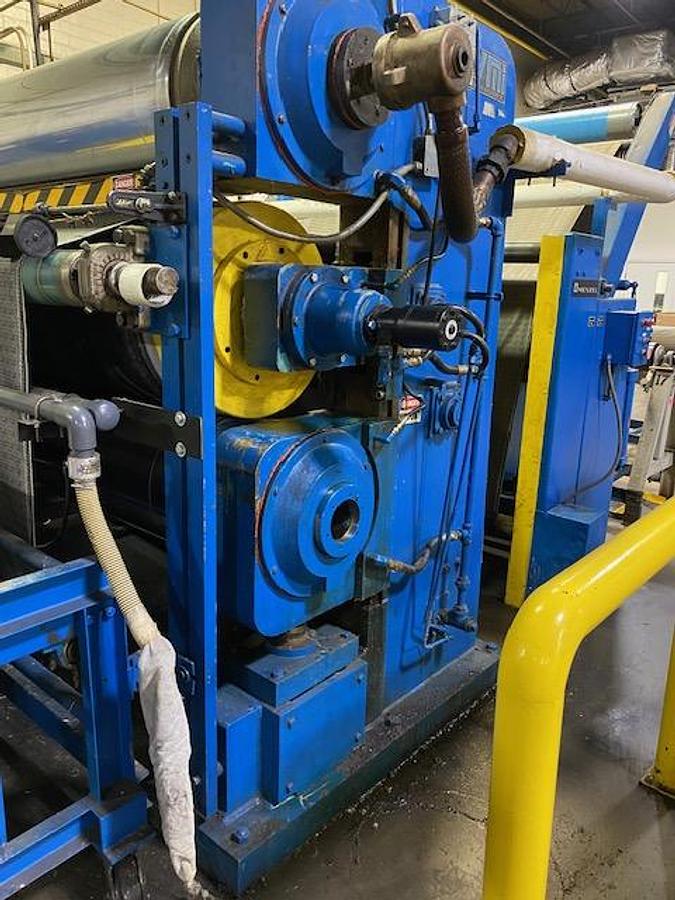

Verduin 101” wide Calendar, year 1995 (modern design with a C flange where the rolls can be removed from the front of the machine): A)  Feeds from a buggy, over to a tension stand 100” wide, under an operators platform and up over an entry roll, over a bow roll and then into the calendar B)  3-Roll Calendar, top roll is steel, 101” wide x 16” diameter, chrome plated, heated with hot oil C)  Middle roll is filled, 101″ wide, however at the moment it is filled out to 98” wide x 24” diameter, with off nip drive D)  Bottom roll is steel, 101” wide x 18” diameter, chrome plated, this roll can be heated but at the moment it is running cold E)  Hydraulic pressure, 75 ton F)  40 HP DC motor drive, with gear reducer G)  Hot Oil Heater H)  Has a newly spare filled roll, 101” wide x 24” diameter
