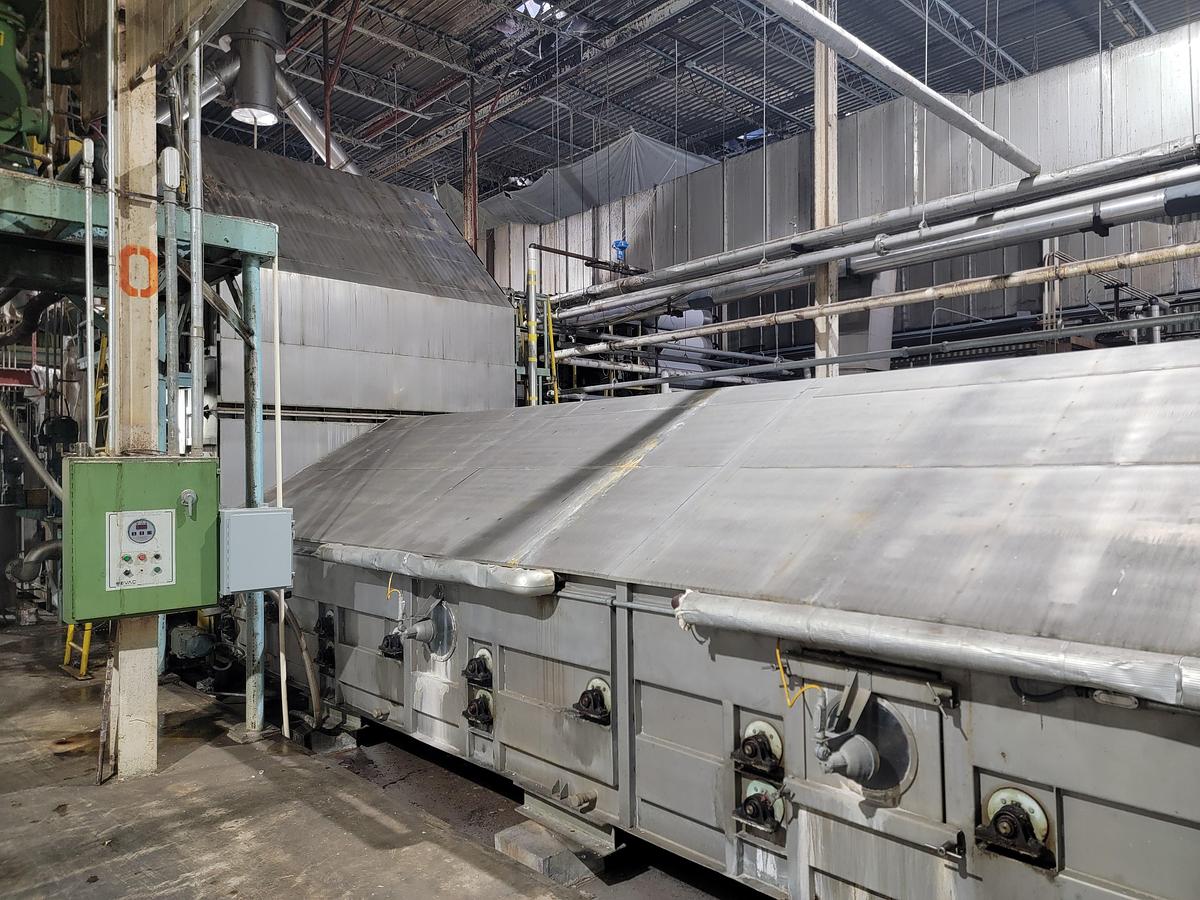

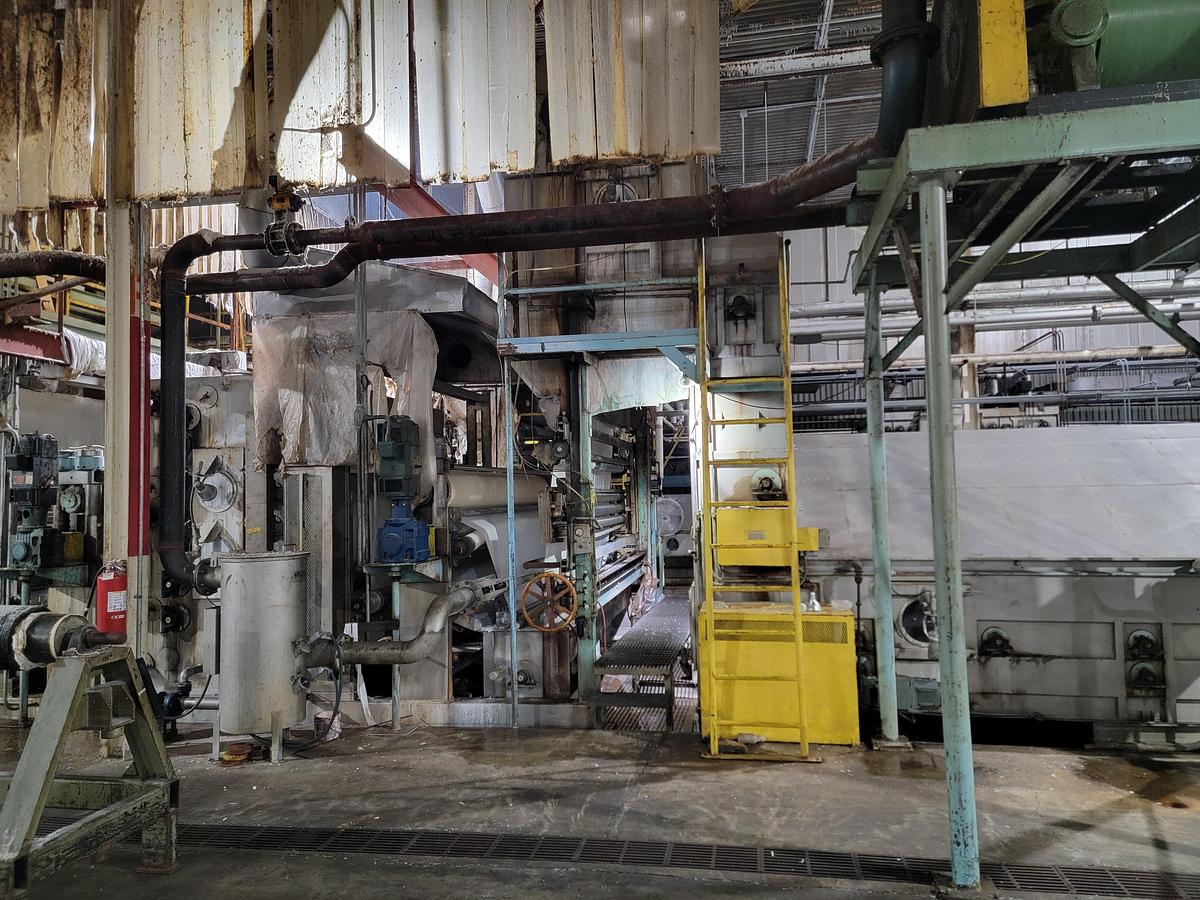

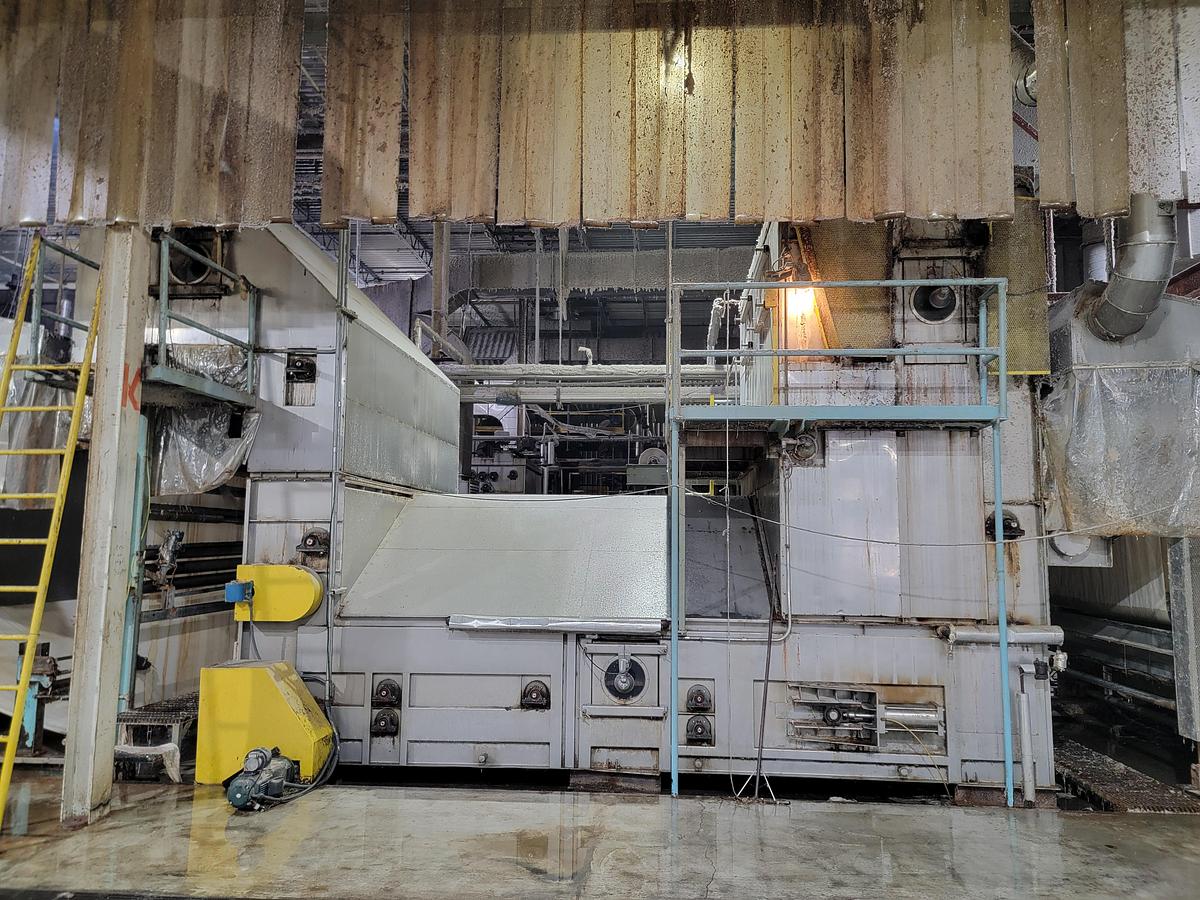

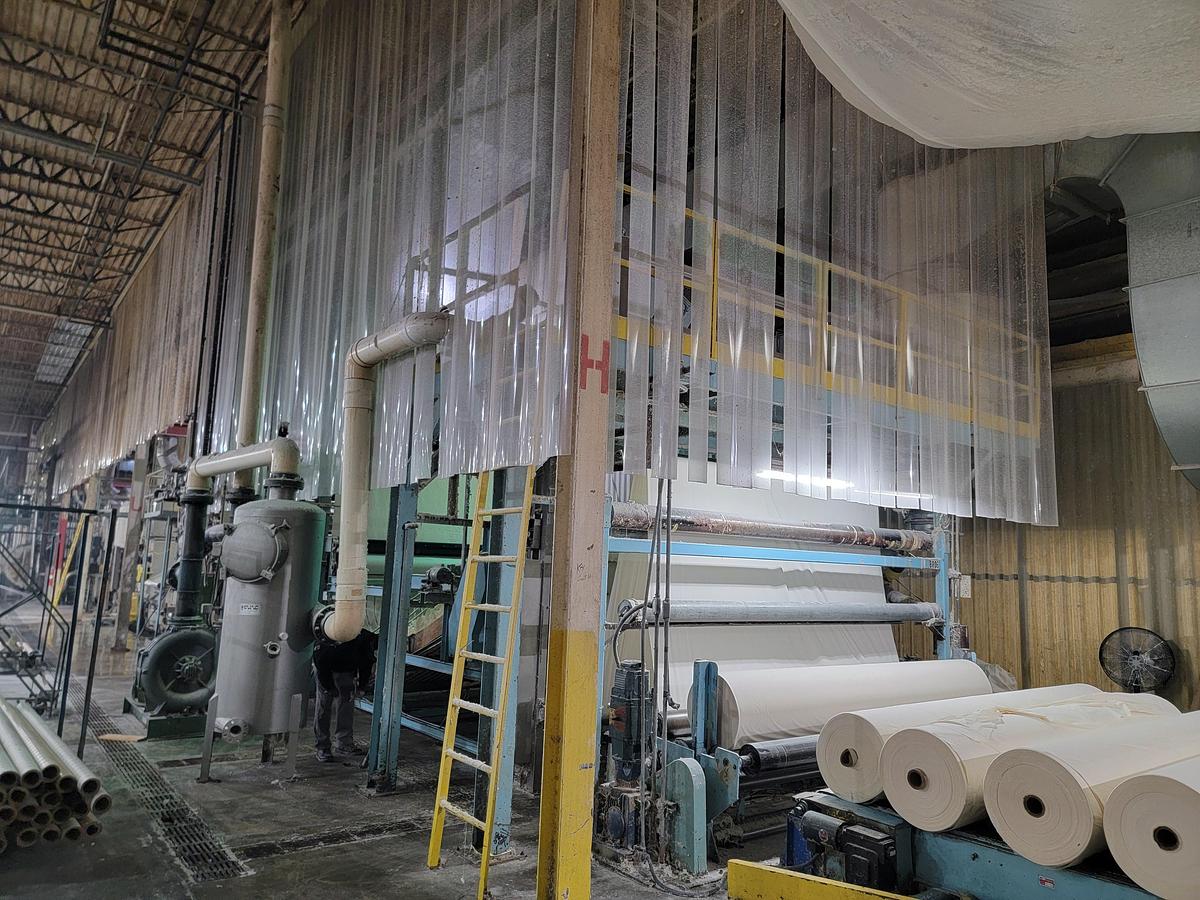

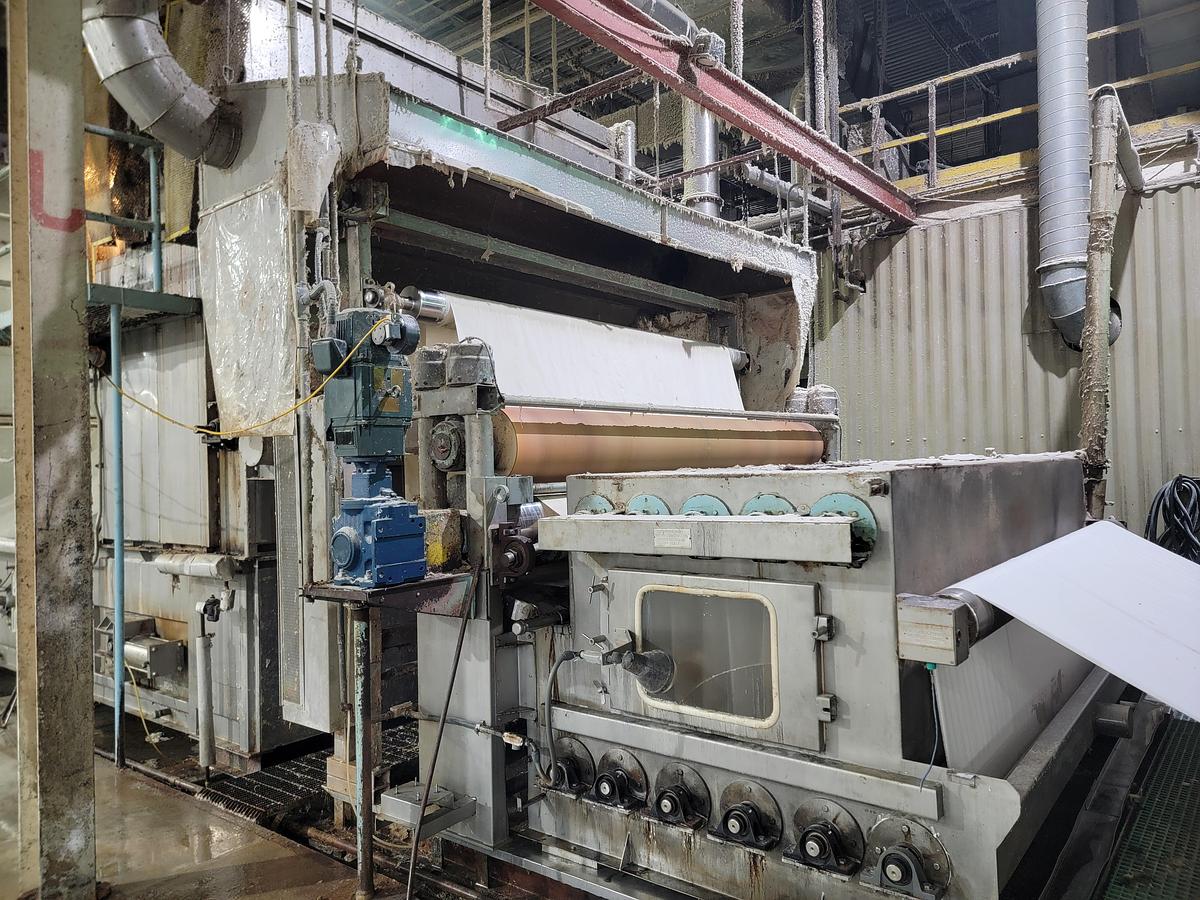

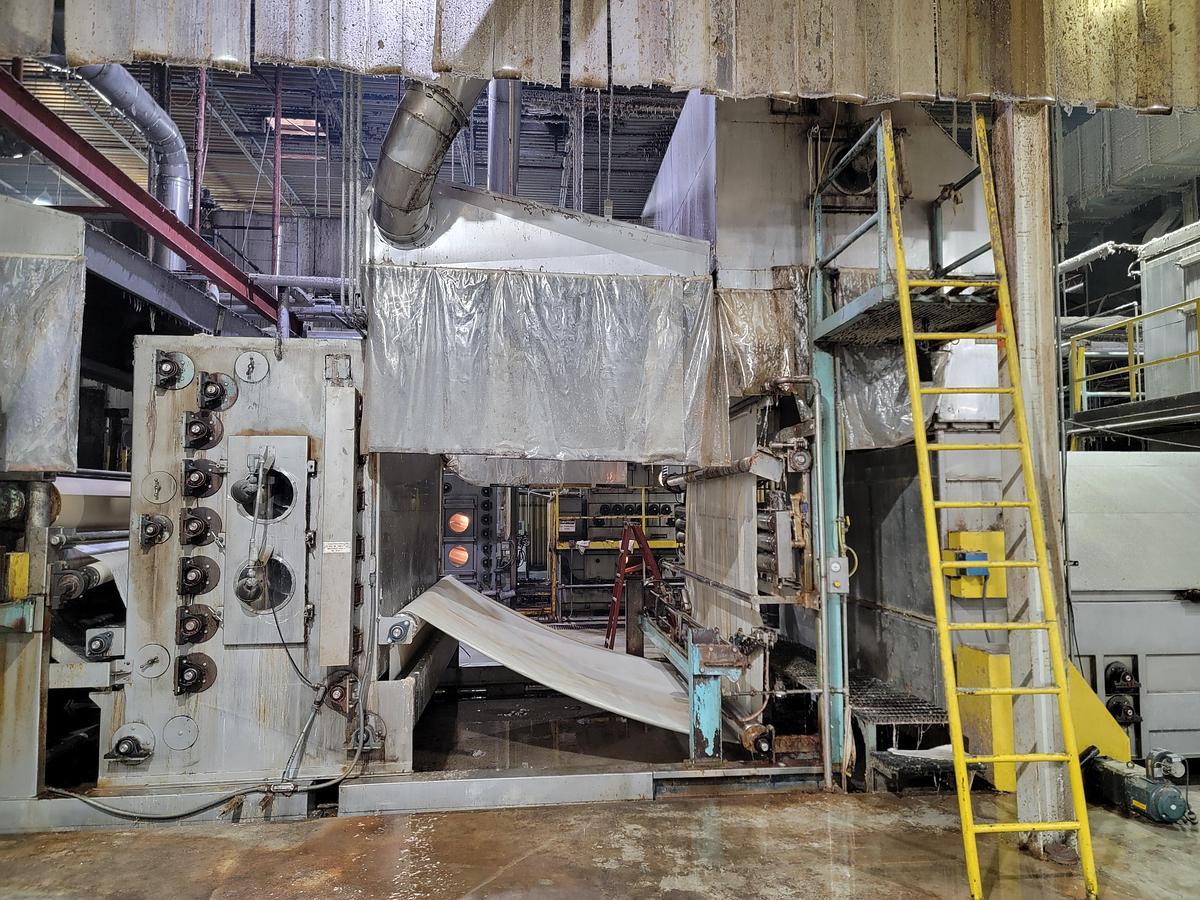

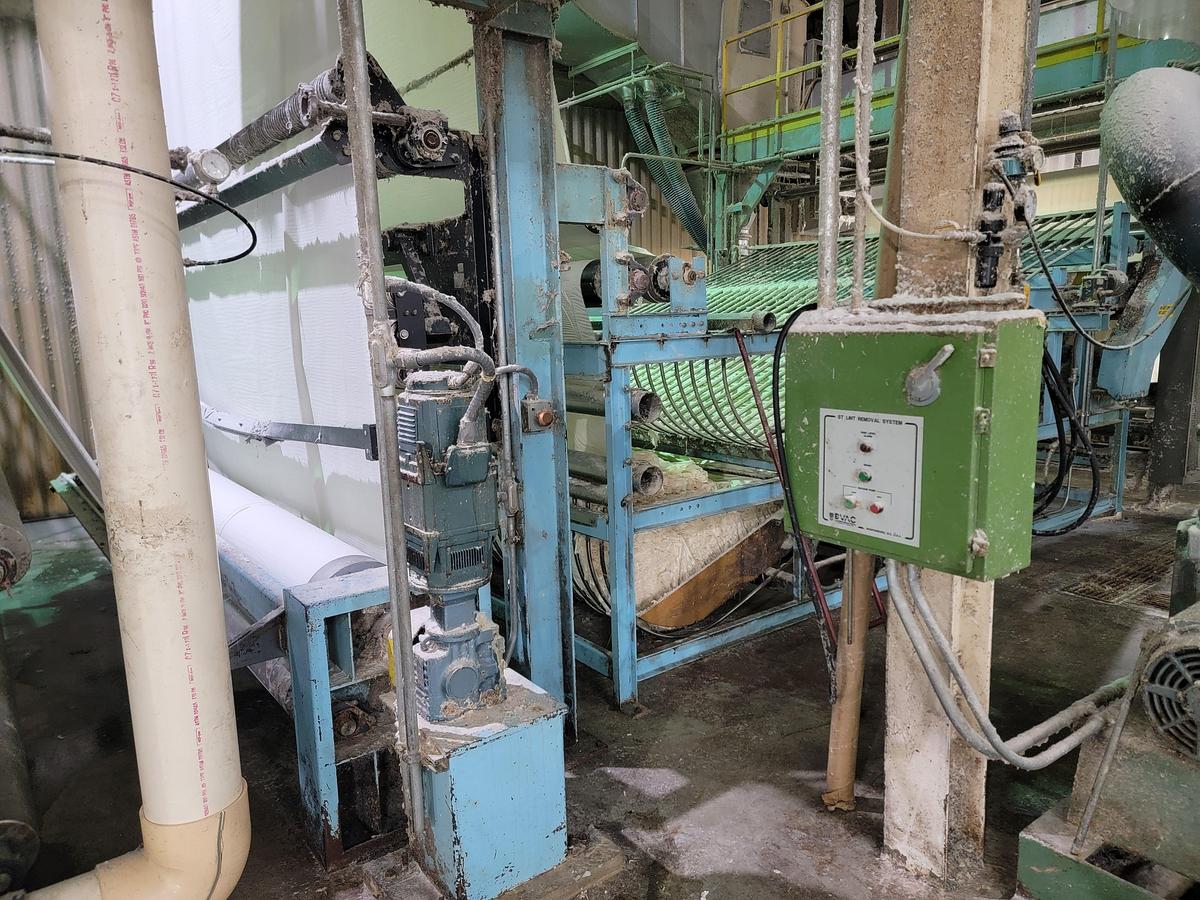

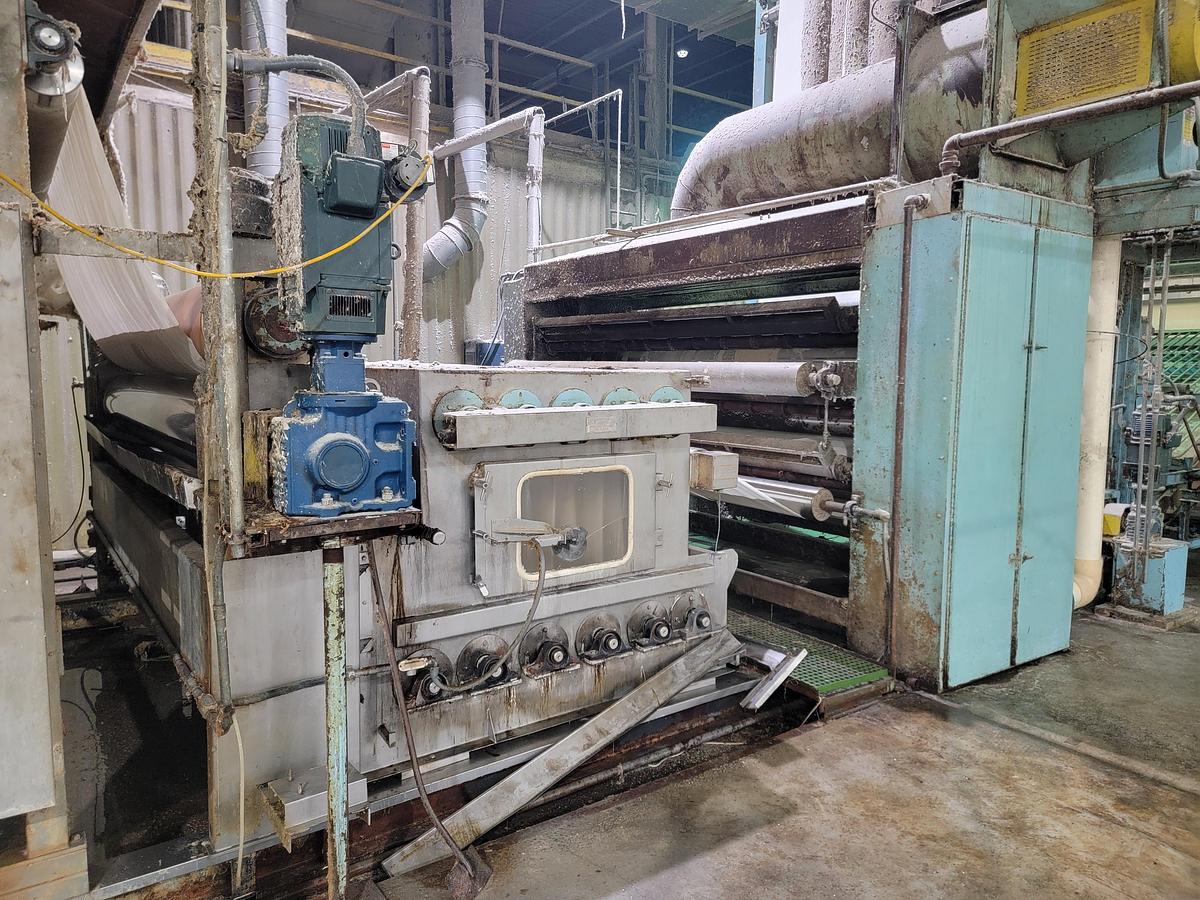

Morrison 3 Stage Bleach Range No. 6, 140" Face

Morrison 3-Stage Bleach Range No. 6, 140” face, SPW consisting of:

A)    Conveyor Entry for the rolls that is 12’ long, motorized conveyor

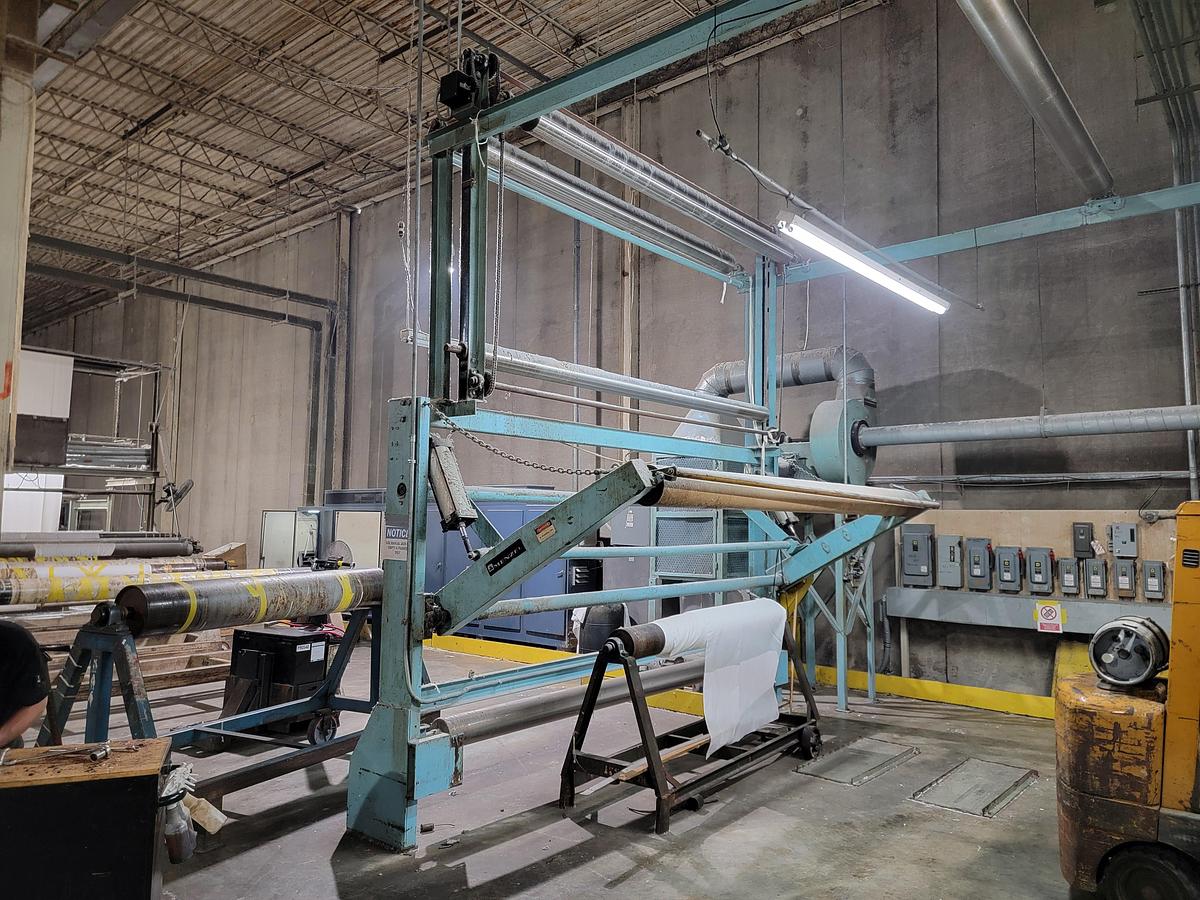

B)    Unwind Stand

C)    140” Wide Compensator

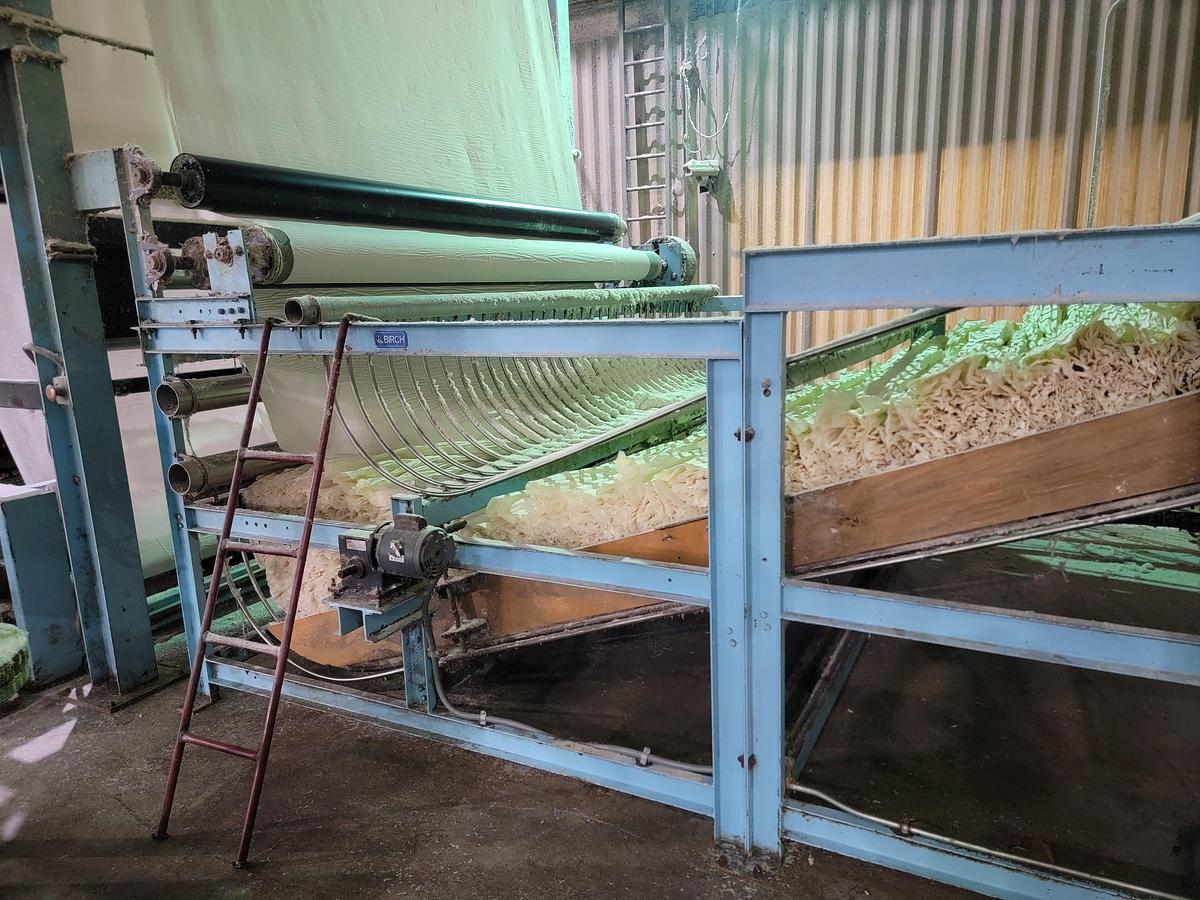

D)     J-Scray

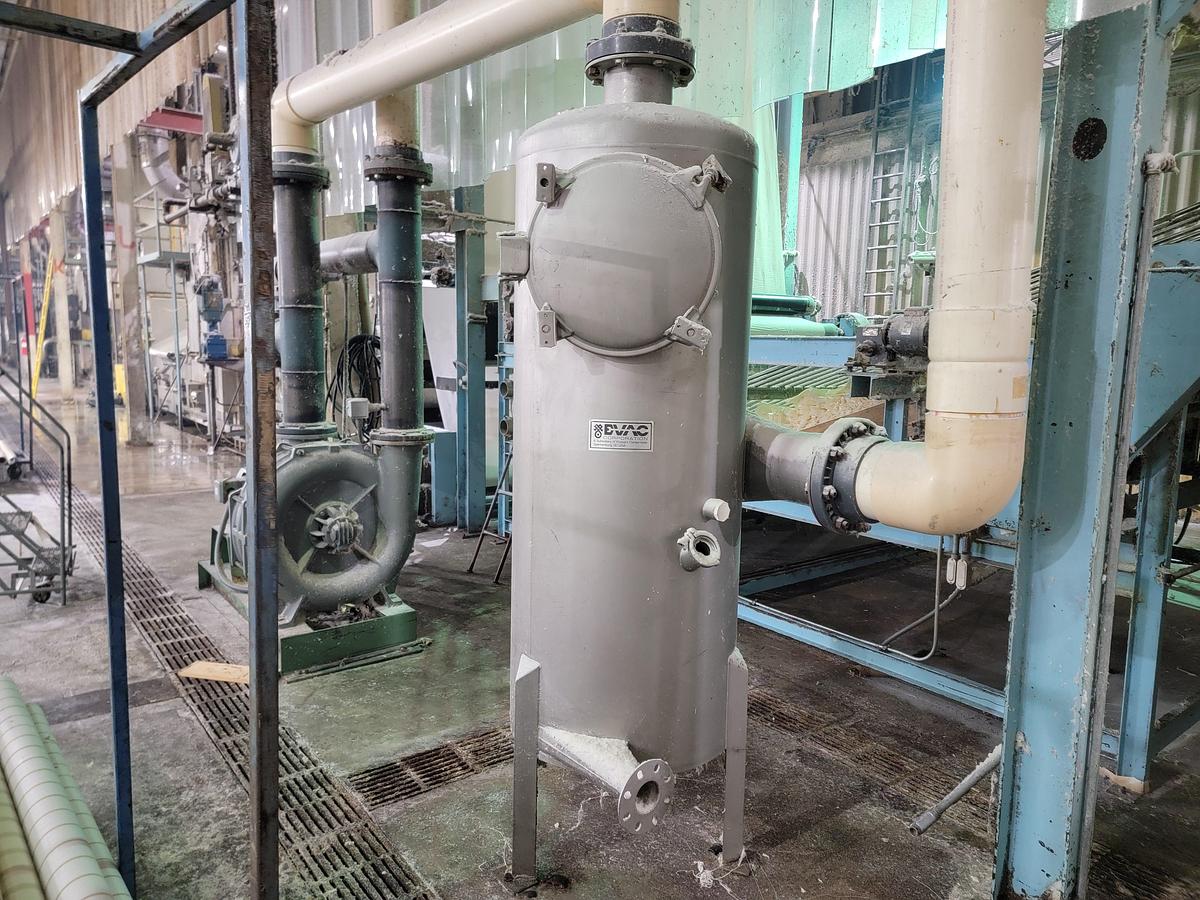

E)     Evac System Lint Collector, 40 HP motor, with a Lamson 3-stage

         pump and collection system

F)     140” Wide Centering Device

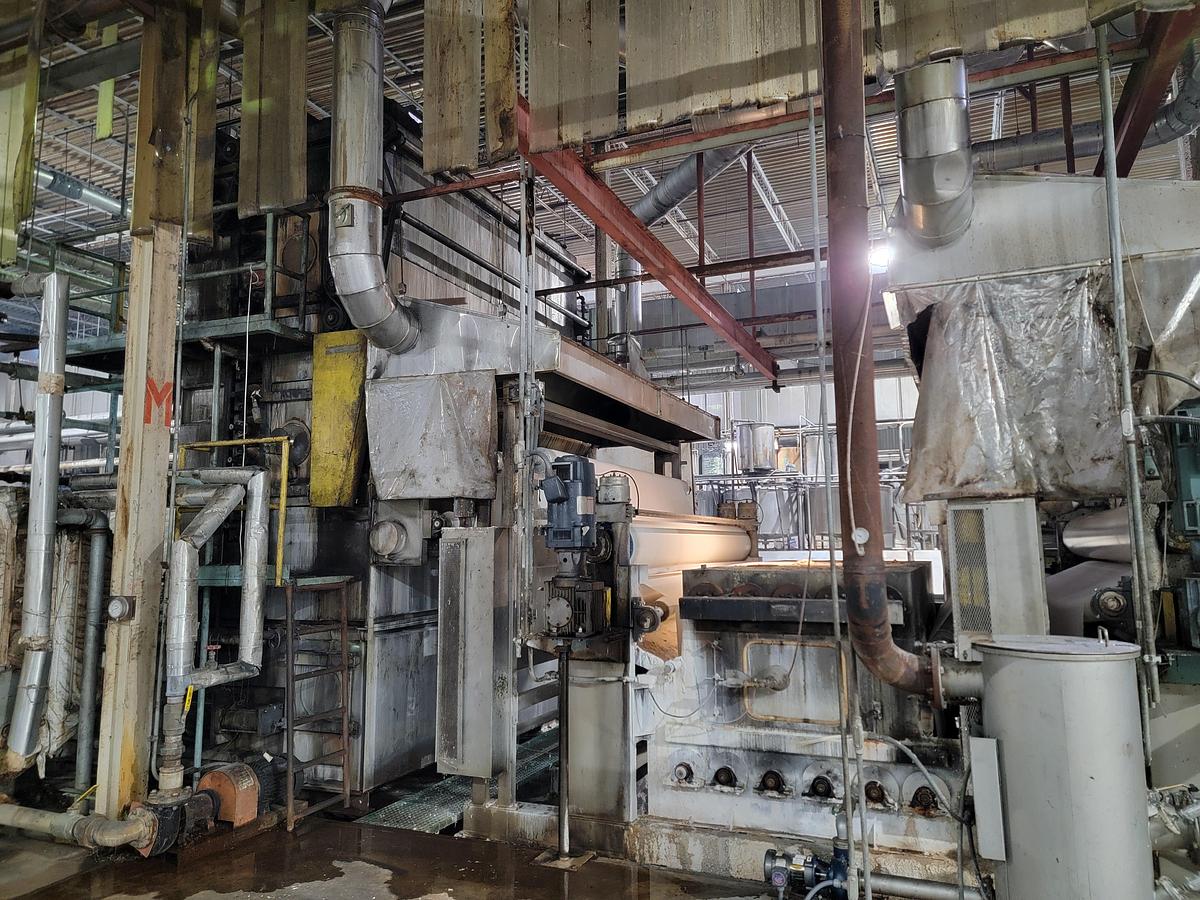

G)     6-Burner Singer, each burner has a stainless steel chilled roll behind

         each burner (ribbon type burner), 140” wide

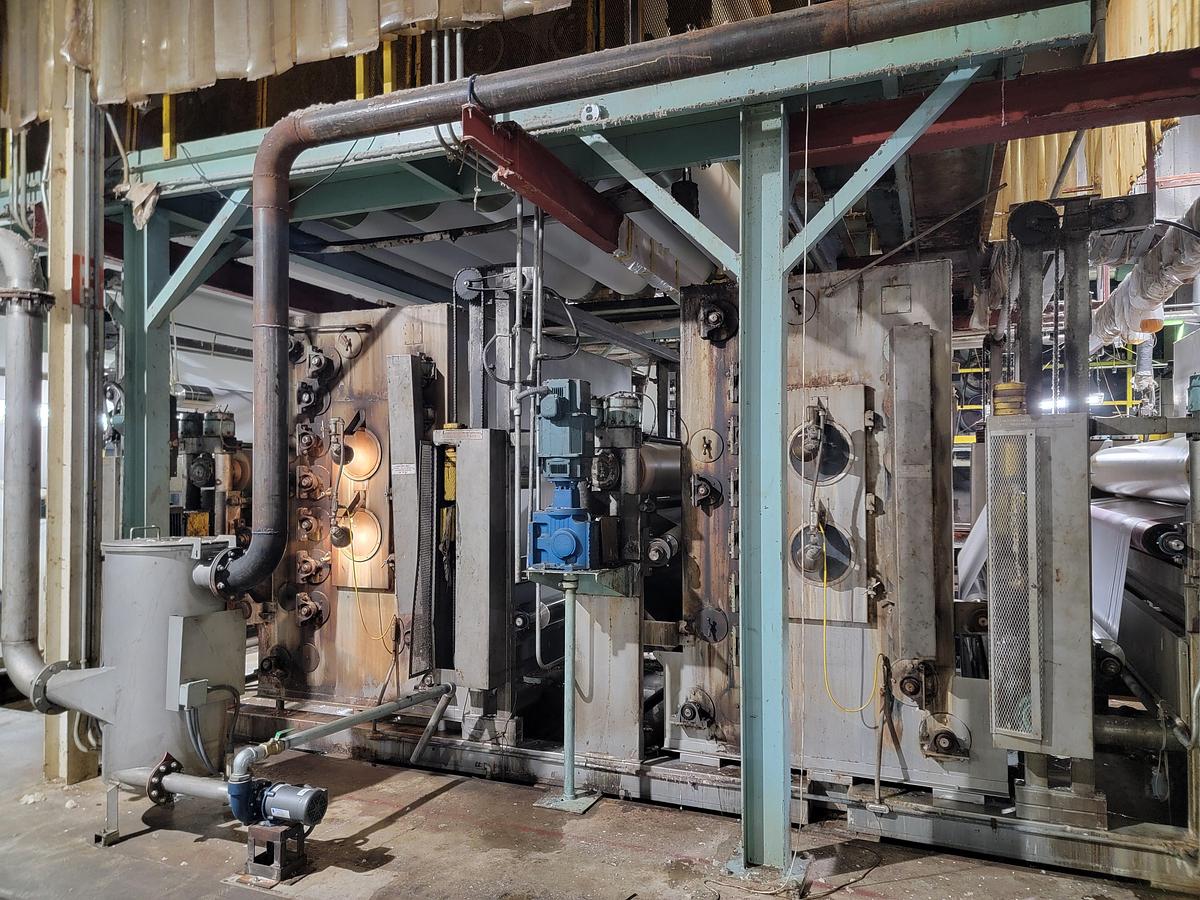

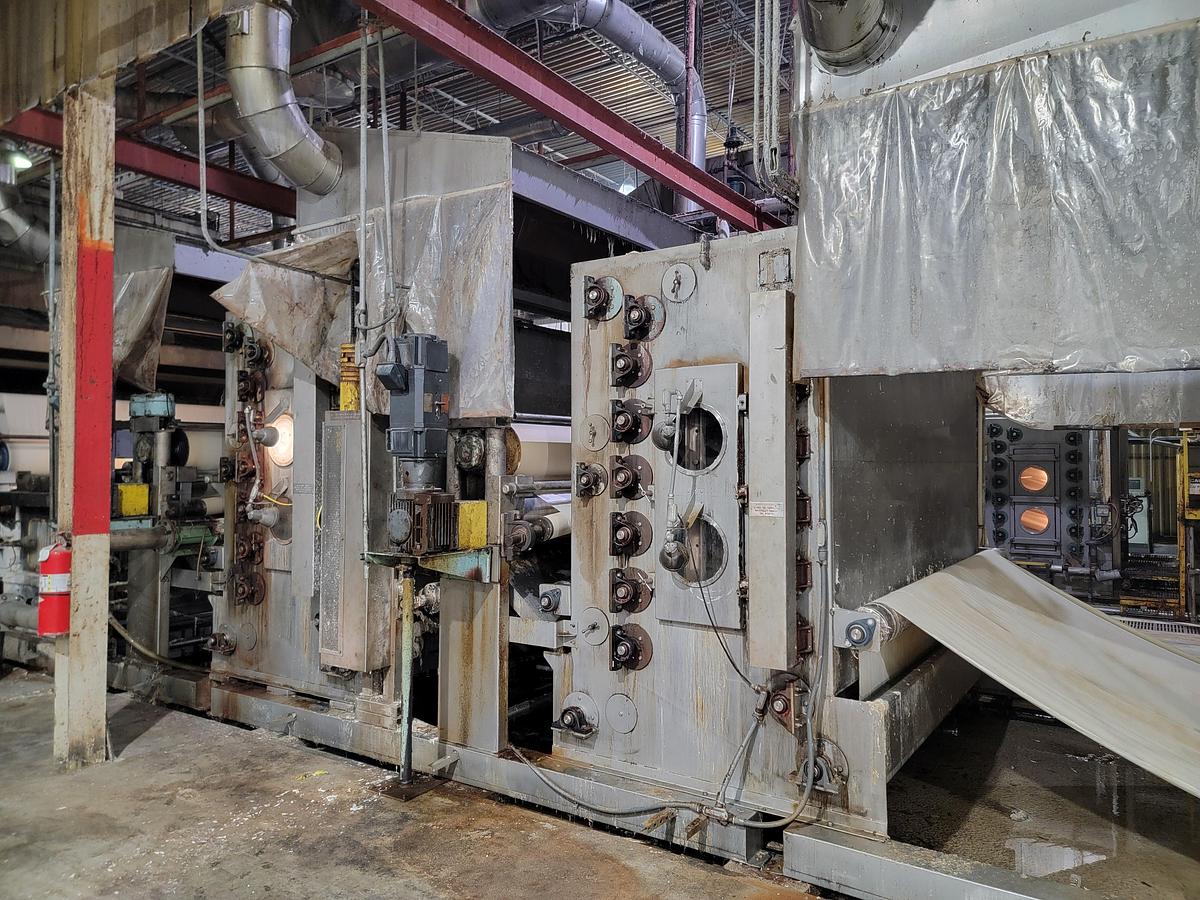

H)     Morrison 8-Roll Saturator Box, 140” wide, 5 top rolls and 6 bottom

         rolls, with a rubber/stainless steel nip behind it, 14” diameter rolls,

         10 ton, pneumatic

I)       140” Wide Compensator

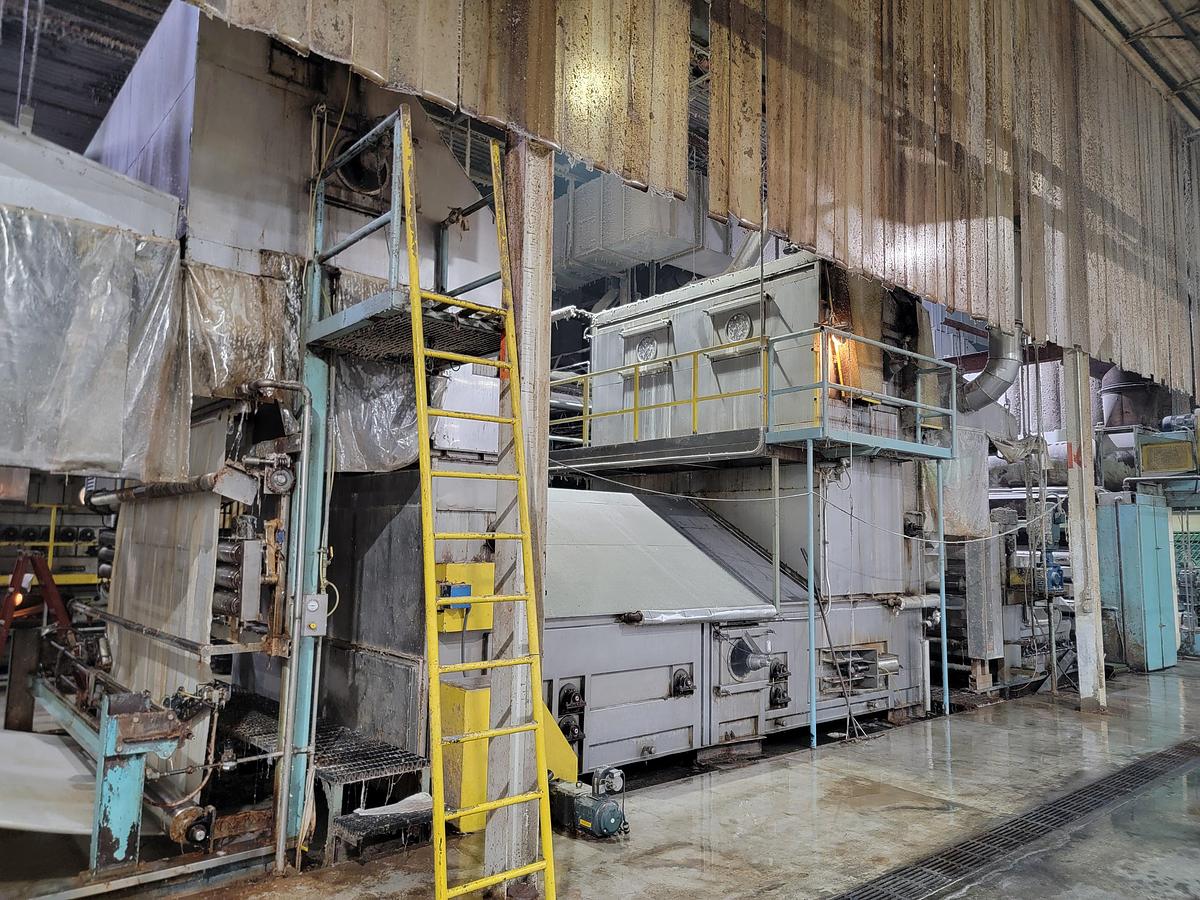

J)      Morrison Conveyor Steamer, 140” wide, combination tight strand

         and conveyor steamer, 20 yard capacity, bottom is roller bed

         steamer, 15’ long

K)     Centering Device, 140” wide

L)     Set of Guider Specialty 15” Guiders

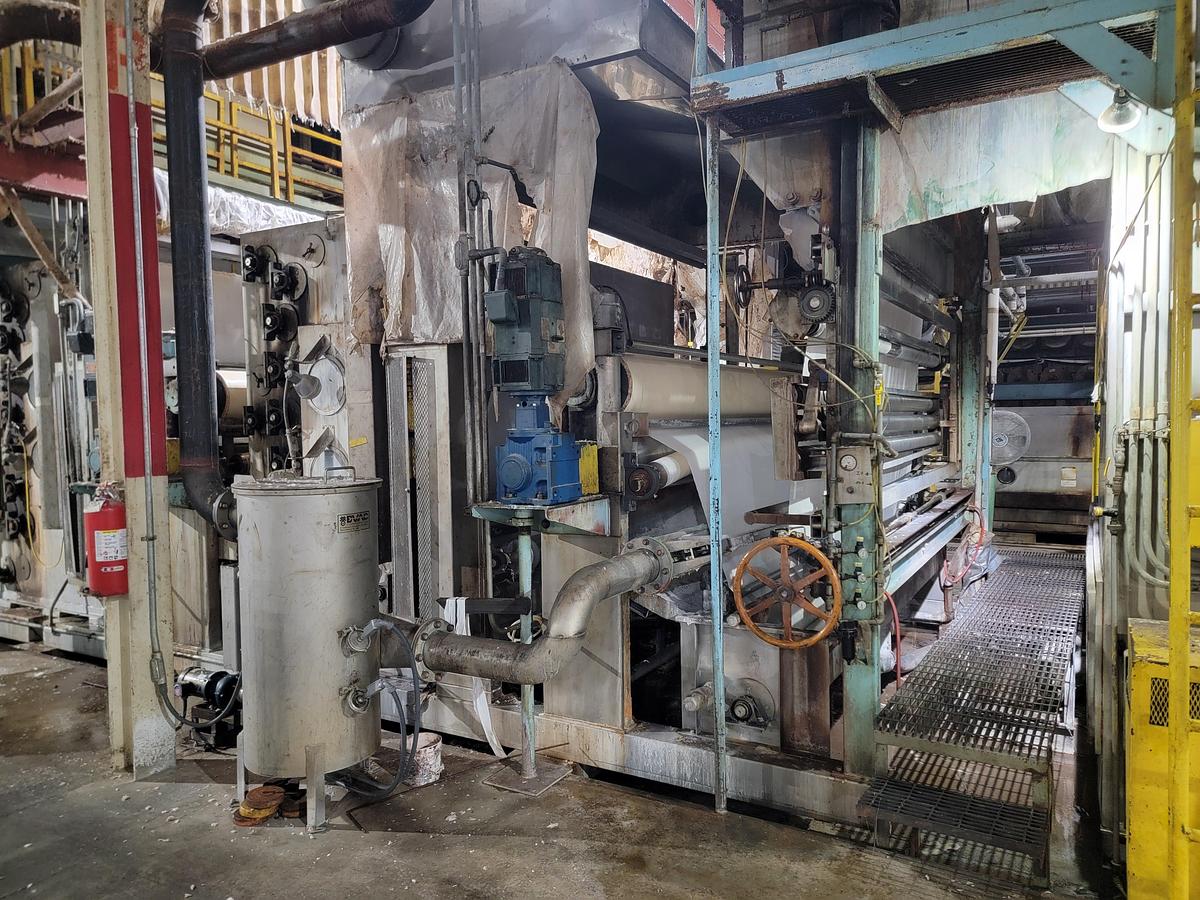

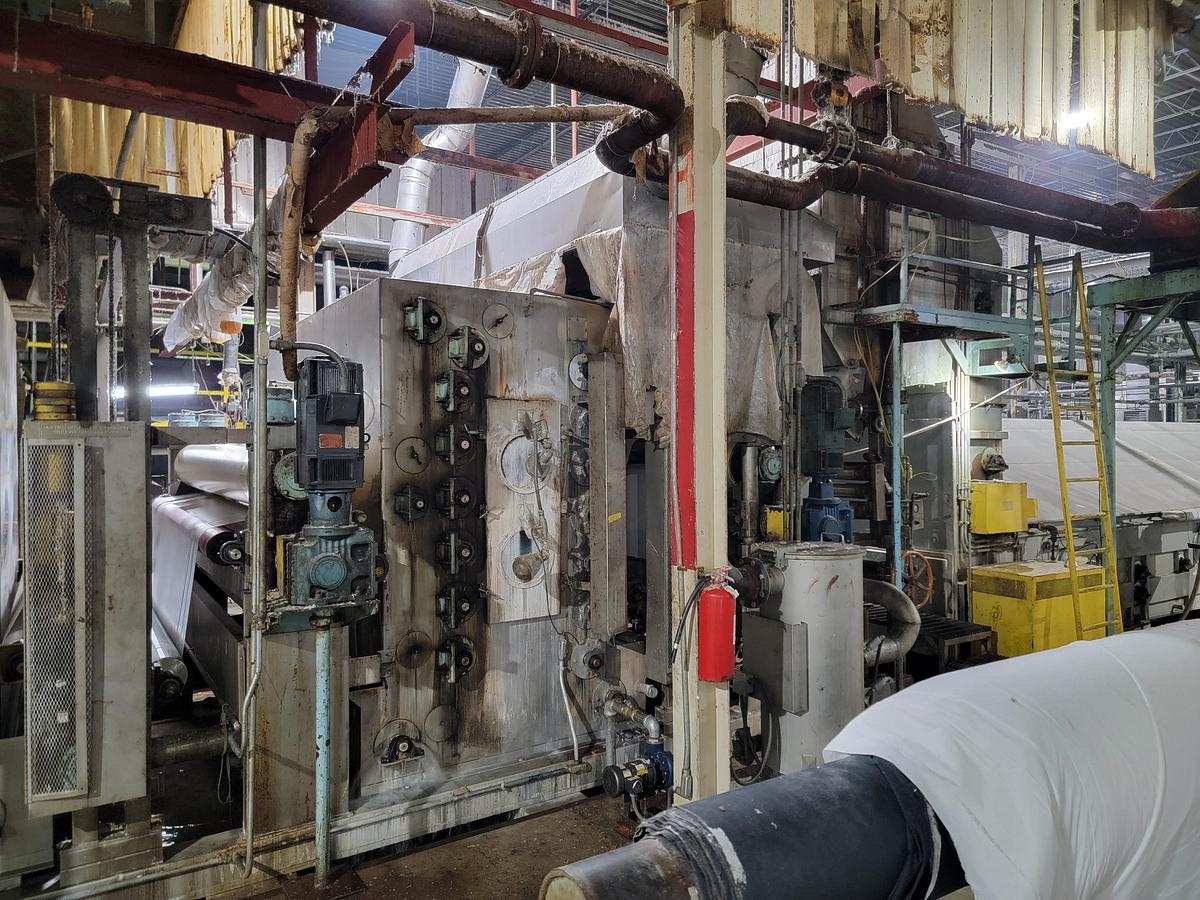

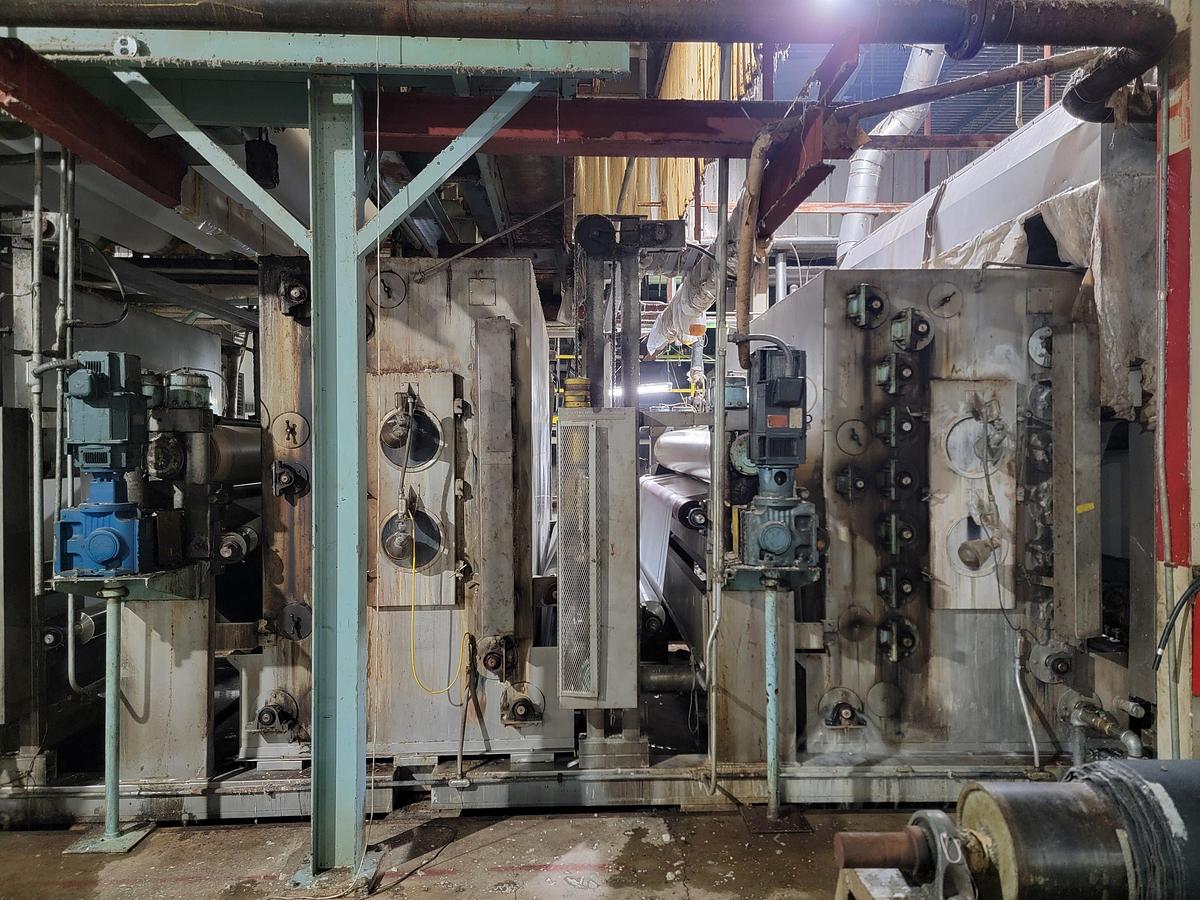

M)    (2) Morrison Horizontal Wash Boxes, 140” wide, 25 yard capacity,

         behind each box is a nip stand, rubber/stainless, 14” diameter,

         140” wide, pneumatic, 10 ton

N)     140” Wide Compensator

O)     140” Wide Morrison Enclosed Saturator Box, 5 top and 6 bottom rolls

P)     140” Wide Nip Stand, rubber/stainless, pneumatic, 10 ton,

         14” diameter rolls

Q)     140” Wide Compensator

R)     Morrison Conveyor Steamer, 140” wide, combination tight strand

         and conveyor steamer, 30 yard capacity, bottom is roller bed

         steamer, 50’ long

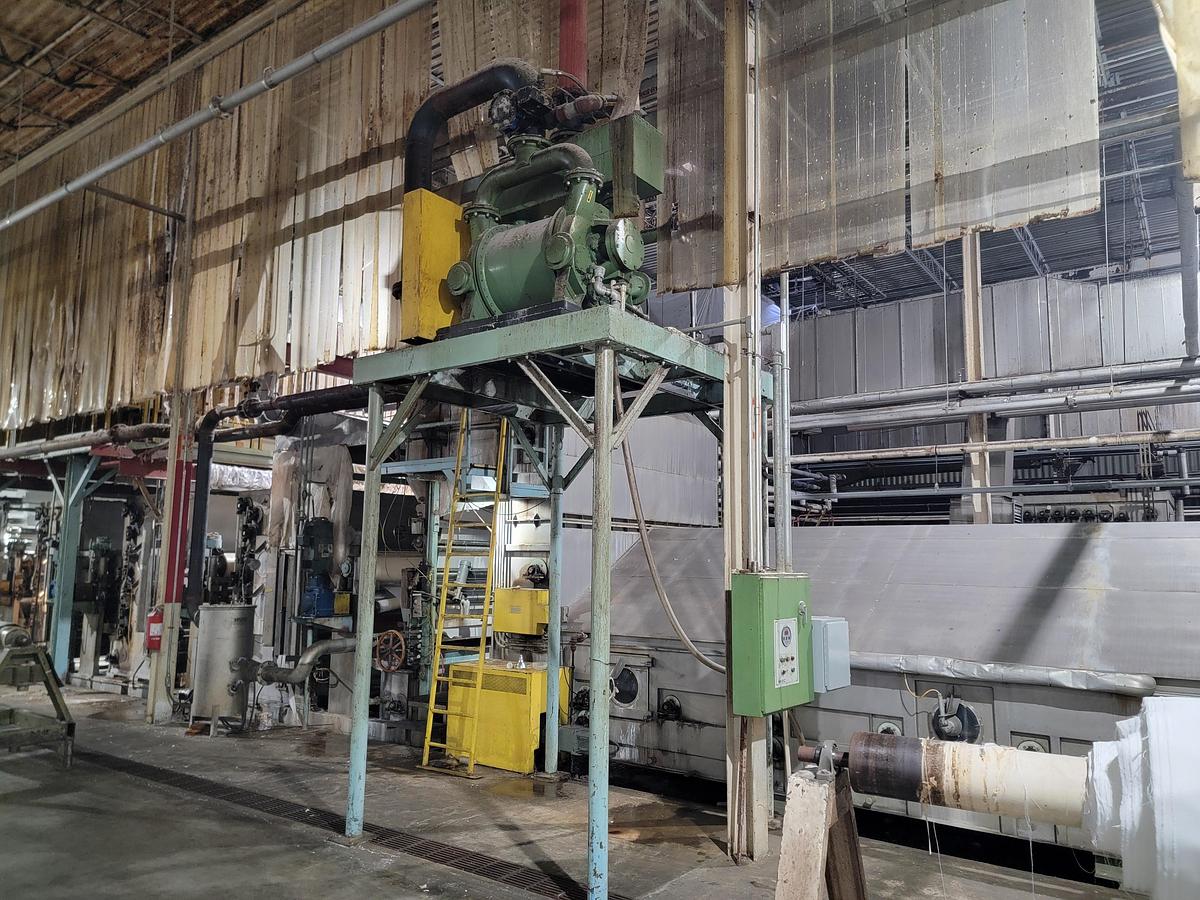

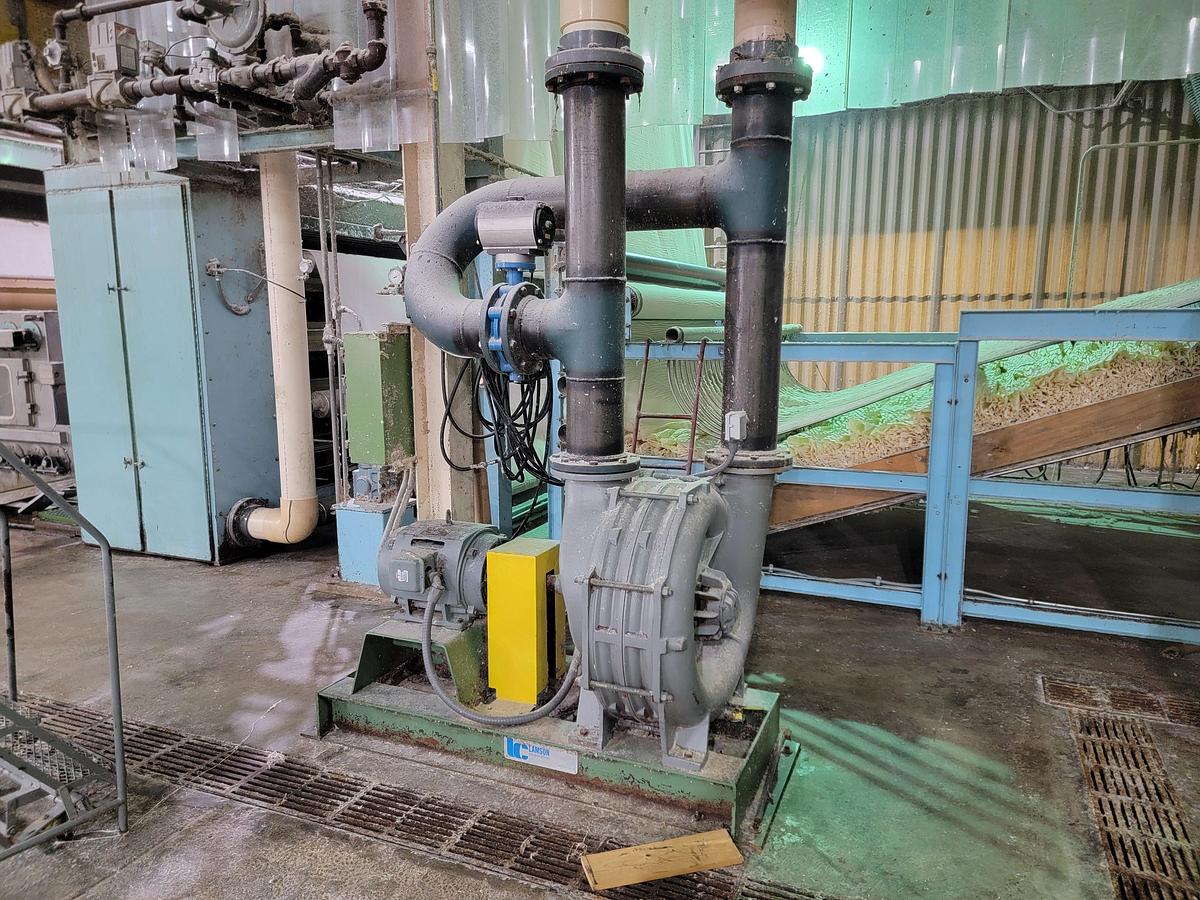

S)     (2) Vacuum Systems, the first vacuum is 40 HP single slot,

         second vacuum 100 HP with 2 slots, both Suterbuilt pumps

T)     Centering Device

U)     Nip Stand, rubber/stainless, 14” dia. rolls, 140” W, 10 ton, pneumatic

V)     140” Wide Compensator

W)    (3) Morrison Horizontal Wash Boxes, each box is 140” wide, 25 yard

         capacity, between each wash box is a rubber/stainless nip,

         140” wide, 14” diameter, 10 ton, pneumatic

X)     140” Wide Compensator

Y)     (3) Horizontal Stacks (16) Dry Cans each, 140” wide x 23” dia., 75 psi

A)     140” Wide Stainless Steel Scray

AA)   Set of Guider Specialty Guider, Model 18

BB)   Twin Roll Centering Device

CC)  140” Wide Compensator

DD)  Electric A-Frame Surface Winder, 140” wide

EE)  All DC Motors and Drives
